Philippines Sugar mill to replace Liquid ring vacuum pump

Customer name: Victorias Milling Company, Inc.

Country: Philippines

Application: Sugar mill to replace existing Nash CL3003

Product: Liquid ring vacuum pump

Model and quantity:

2BE1-353 Liquid ring vacuum pump 6 sets

Shipping date: 29th, September 2025

Working condition:

Max flow rate:4800m3/h, the existing model CL-3003 liquid ring vacuum pump, with motor power 132kW.

The comparison of the advantages of the 2BE1-353 and the CL-3003 is shown below:

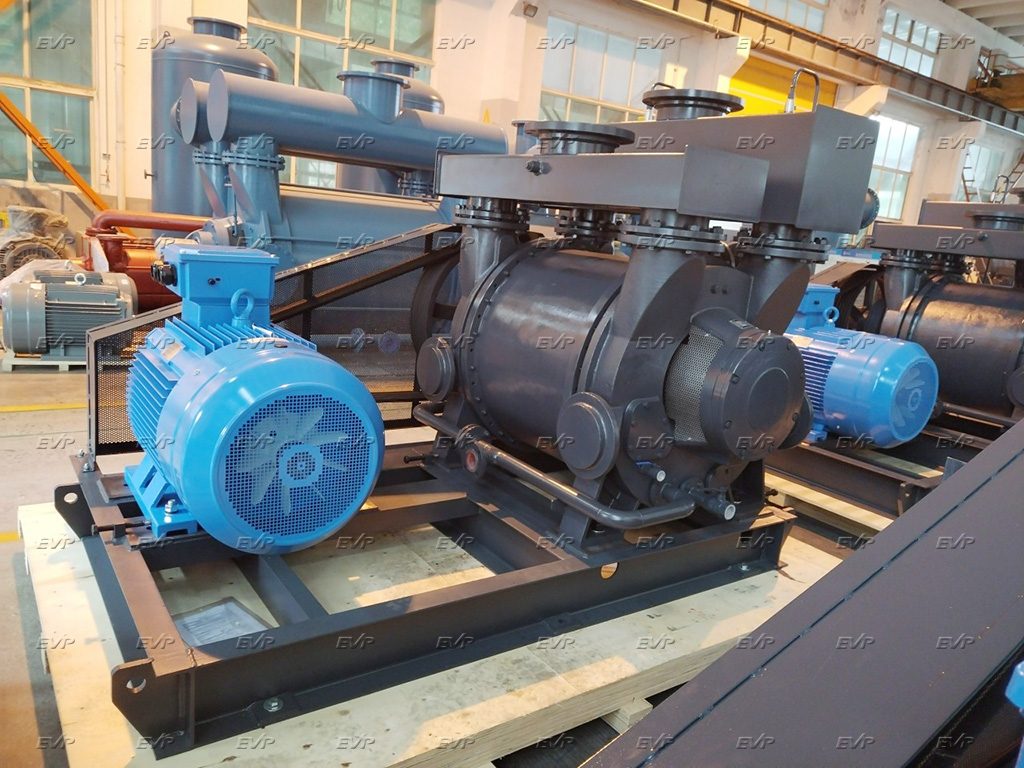

1.2BE1-353 More energy efficient.
2BE1-353 with 110kw motor, CL-3003 with 132kw motor,  in the same performance, 2BE1-353 more energy saving.
It saves about 22kw*8000h=176000 kilowatt-hour per year.

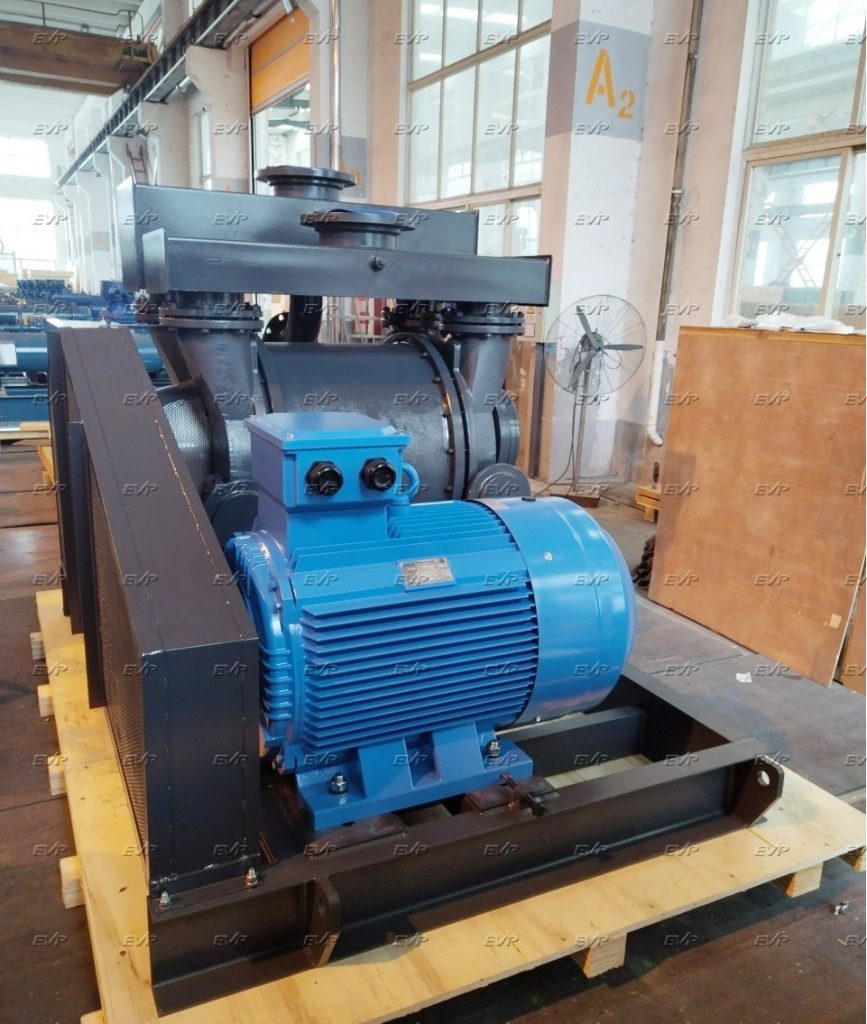

2.2BE1-353 with standard top-mounted separator, covers an area of small, inlet and exhaust interface direction can be side discharge, more flexible (if you need side discharge port, need to specify when ordering).CL need to match with the separator separately.

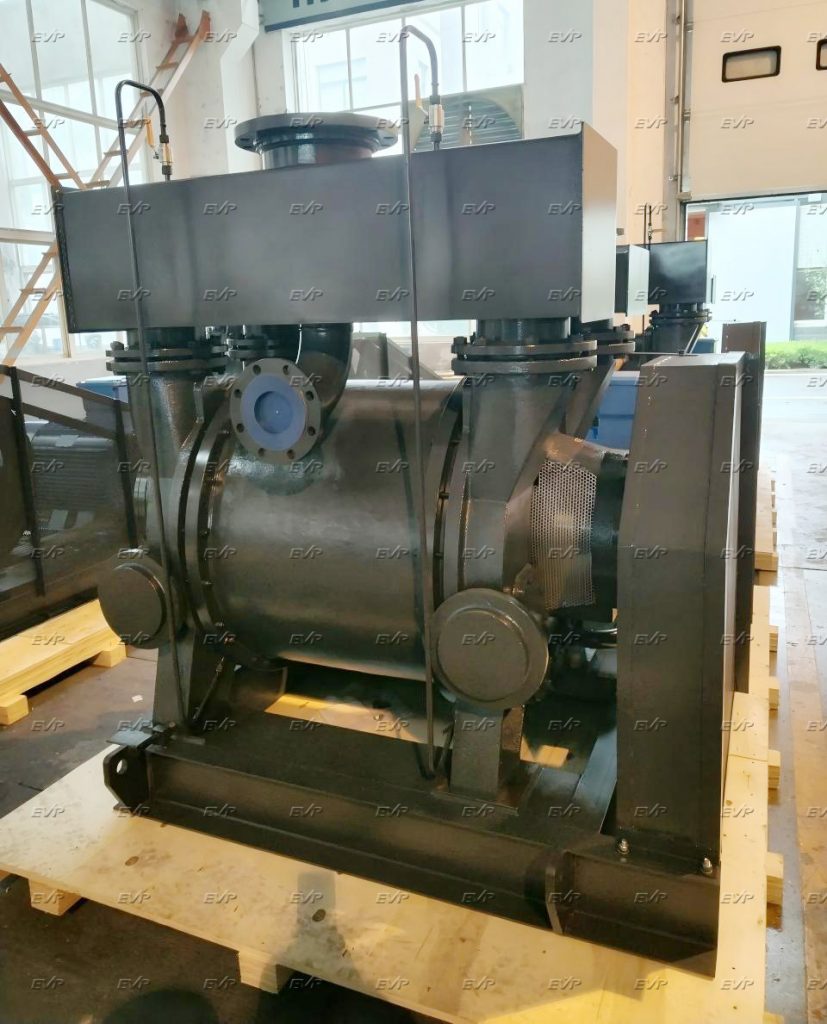

3.2BE-353 pump with internal access interface, easy to use.

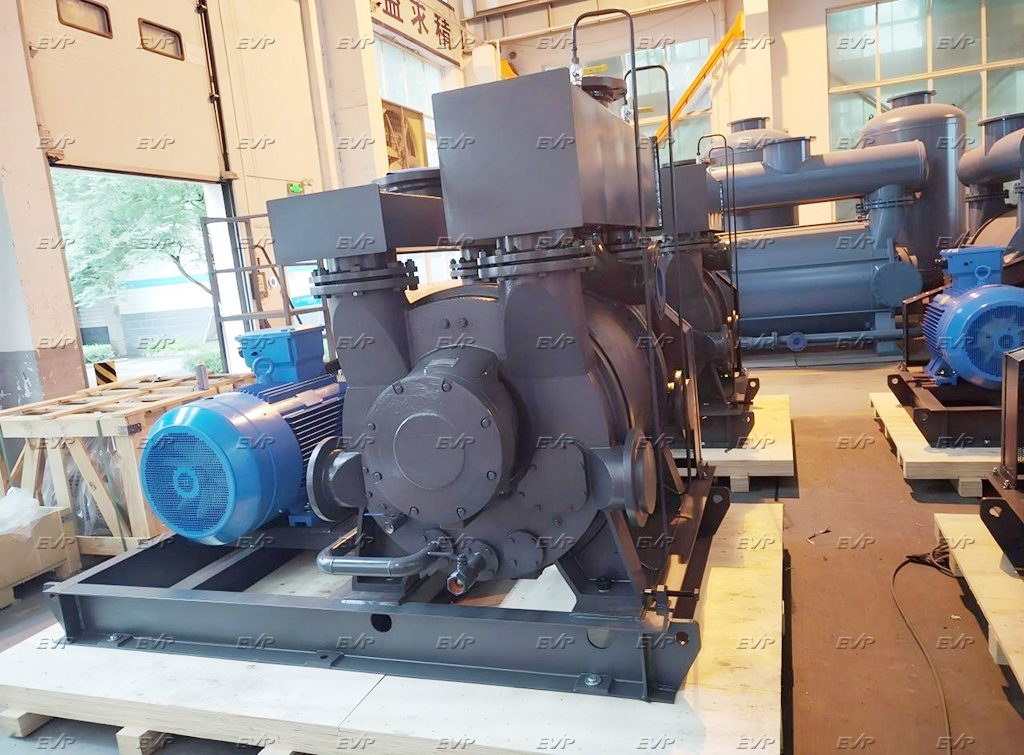

4. 2BE1-353 pump with better ultimate vacuum.
The ultimate vacuum of 2BE1-353 pump is 33 mbar abs, and the ultimate vacuum of CL-3003 pump is 80 mbar abs.

5. 2BE1 series vacuum pumps with flexible exhaust valve plate to avoid over-compression of exhaust, and the pumps have better performance under different intake and exhaust.

6. 2BE1-353 pump uses less water.
The ultimate vacuum around 100-200 mbar abs, the water consumption of 2BE1-353 is 12m3/h, the water consumption of CL-3003 is 15m3/h.

7. At high vacuum, the 2BE has less degradation of pumping performance.

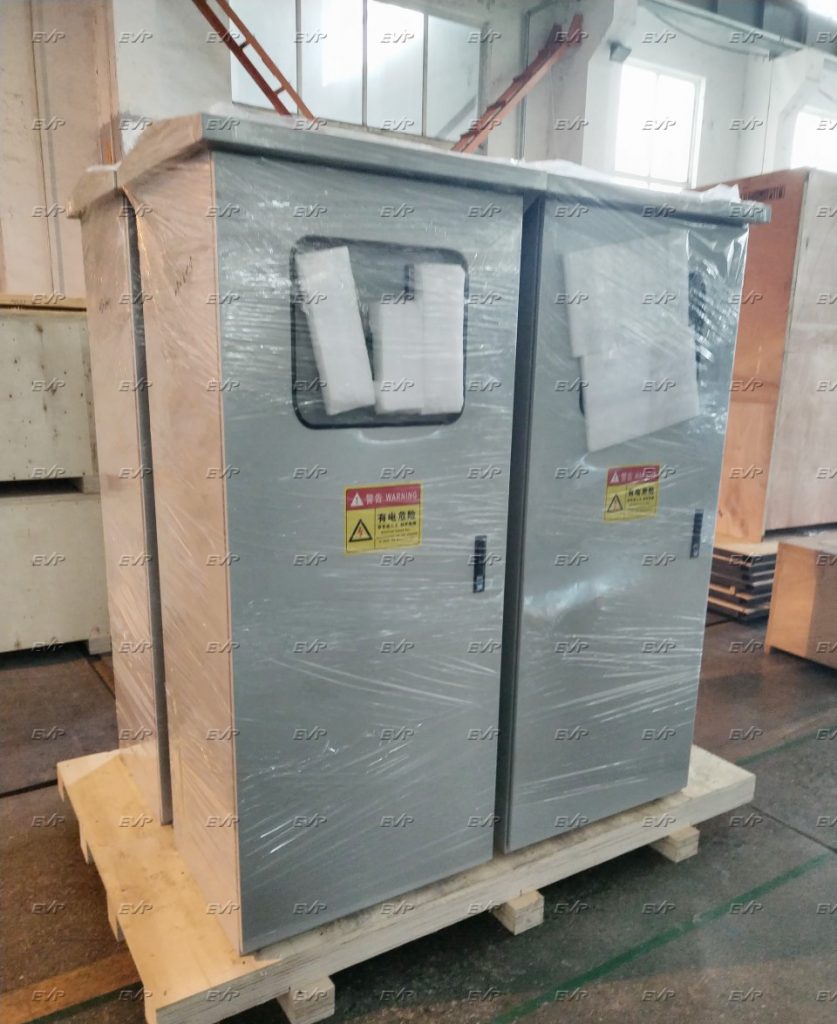

Liquid ring vacuum pump photos before shipping:
