Key Technical Parameters and Selection Guide for Liquid Ring Vacuum Pumps for Offshore Drilling Platforms in Angola

Customer name: ExxonMobil

Country: Angola

Application: Offshore oil drilling platform

Product: Liquid ring vacuum pump

Model and quantity:

DLV-1600E Liquid ring vacuum pump 2 sets

Shipping date:29 Jun., 2020

Working condition:

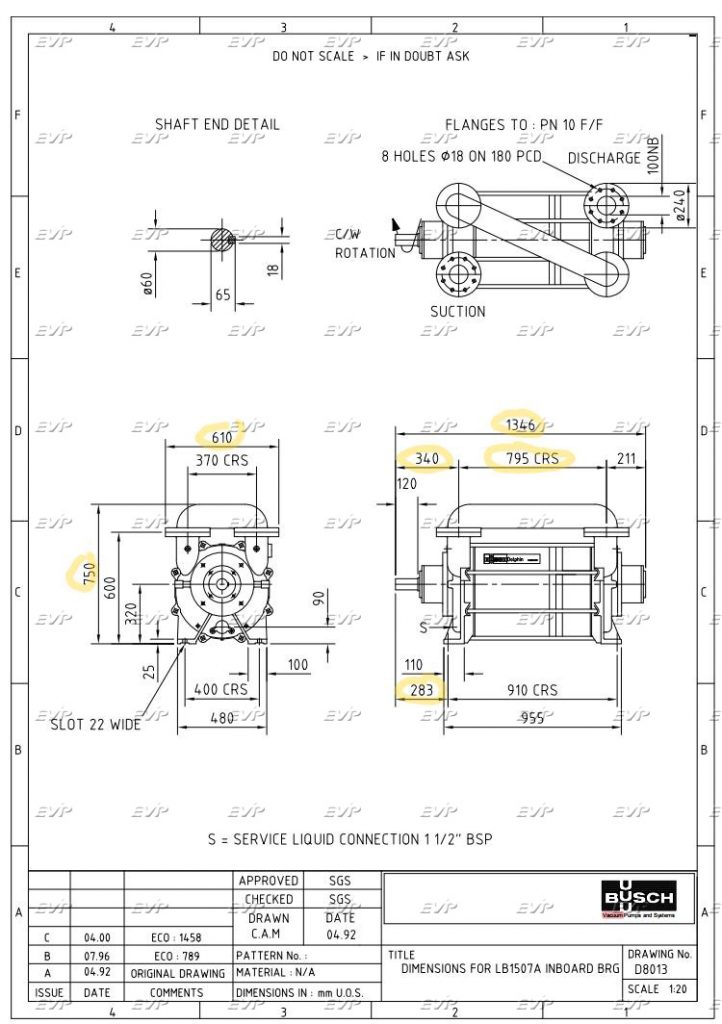

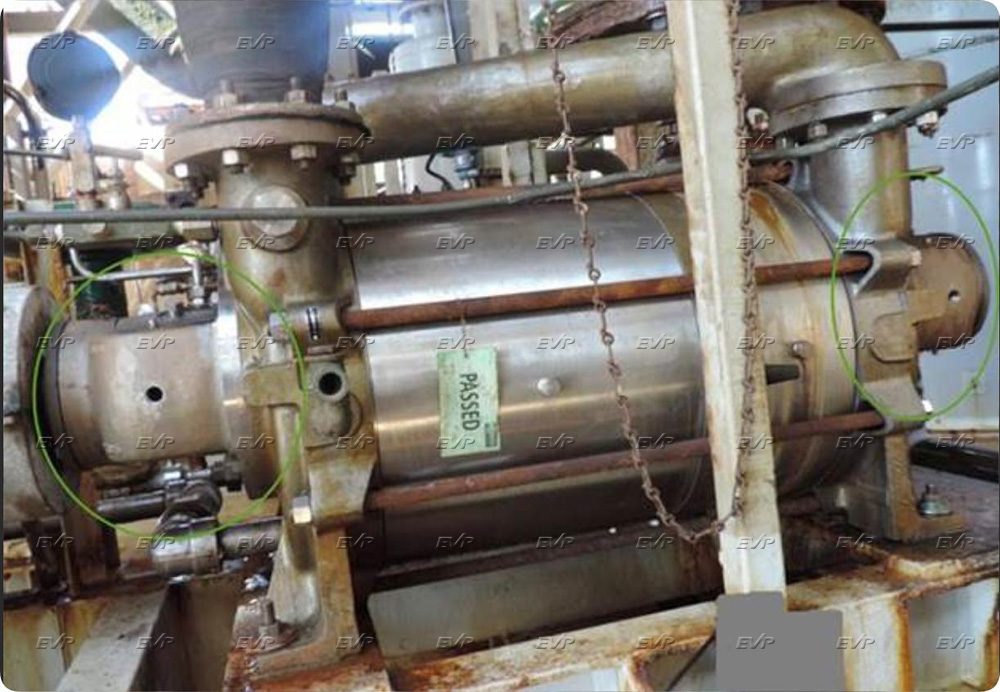

To complete replace BUSCH DOLPHIN LB1507A

All super duplex 25% chrome P.R.E.N 40 construction fitted with super duplex 25% chrome P.R.E.N 40 impellers and shaft.

Materials Pump constructed in below materials

End Casings – Super Duplex 25%

Port Plates – Super Duplex 25%

Impeller Casings – Super Duplex 25%

Impellers – Super Duplex 25%

Shaft – Super Duplex 25%

Bearing Housings – Super Duplex 25%

Pump Gaskets – Standard gaskets.

Mechanical Seal – John Crane type 1648 API 682 Single external cartridge seals. Monel process wetted parts with Carbon / SIC seal faces. FKM elastomers.

Painting – Pump would be supplied unpainted

Connections  – 100 NB Inlet & Outlet Flanges, Flat face

Pump Drains – Screwed & Plugged

•

•

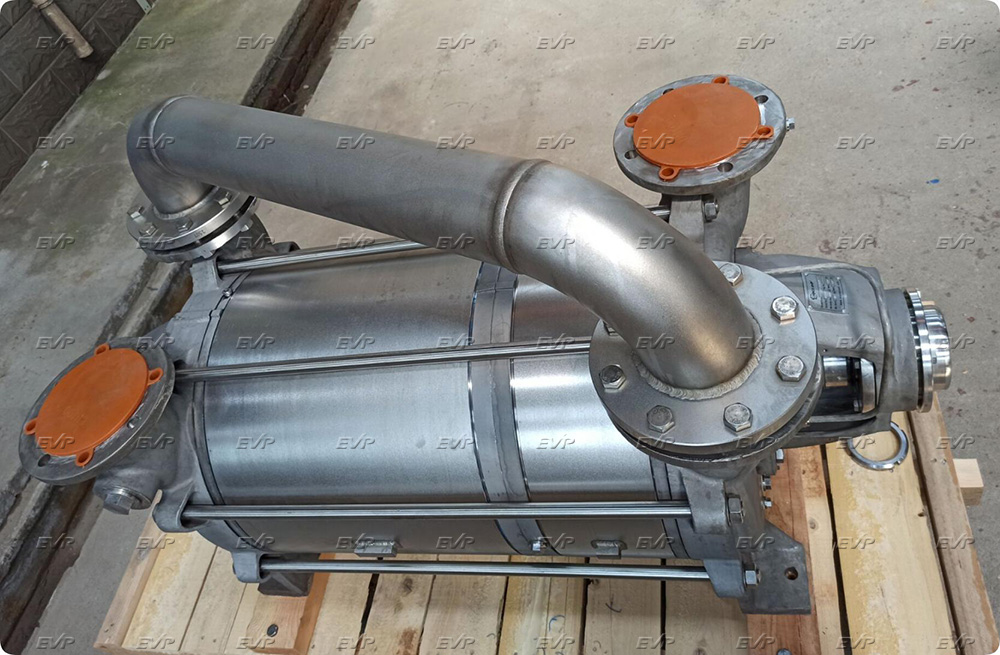

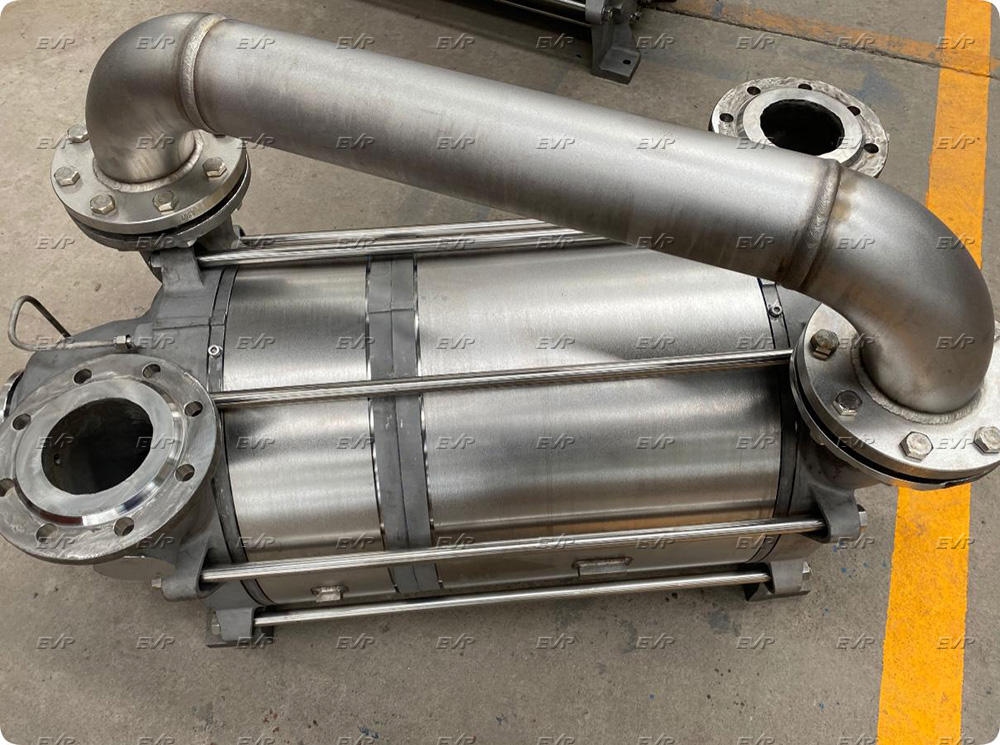

Liquid ring compressor photos before shipping:

•

•
